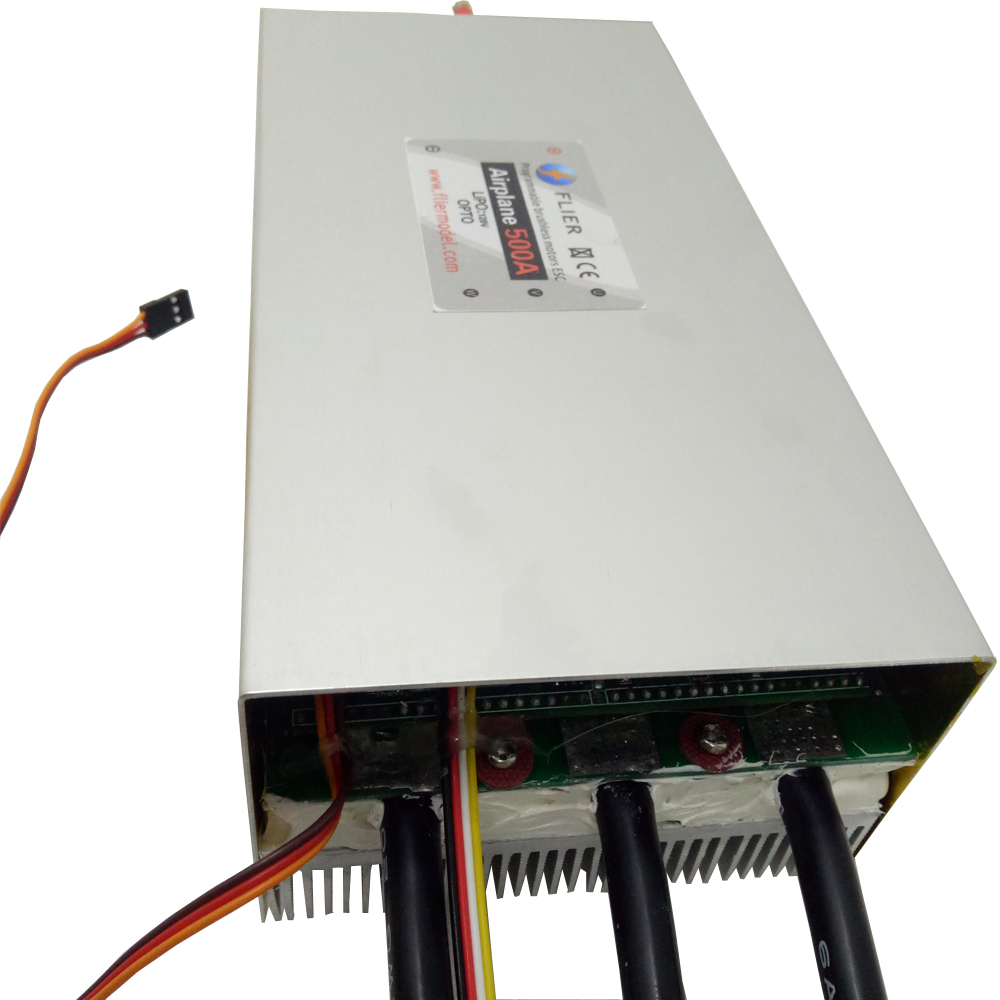

HV airplane/ paramotor/glider brushless ESC 120V 500A

HV airplane/ paramotor/glider brushless ESC 120V 500A



Model:F-120V-500A-A Size:205*115*55mm Weight:1550g



产品详情

1.Design for HV airplane/paramotor/glider, more functions.

 2. Battery voltage from 12V to 120V for super high voltage version.

 3. Two way communication while connecting it with computer.

 4. Firmware can be upgrade by user.

 5. Motor cable can be inspected while Connecting the power battery

 6. Simply set function value by Prog-Box or by PC via USB link wire.

 7. Li-MH/Li-Po,Ne-Cd/Ne-mH,LiFe battery can be use.

8. Enables setting the voltage per cell for the point at which the controller’s cut off circuitry engages.Li-MH/Li-Po from 2.0-3.6V,Ne-Cd/Ne-mH 0.4-1.0V,LiFe from2.2-2.8V

9.  Reverse function. the delay time of reverse is adjustable

10. Automatically detection the throttle route or can be set a fixed number by manual operation.

11.  Auto cut off the power within 3 seconds if no radio signs.

12. Timing setting may be adjusted (0°-30°) to suit the motor type.
